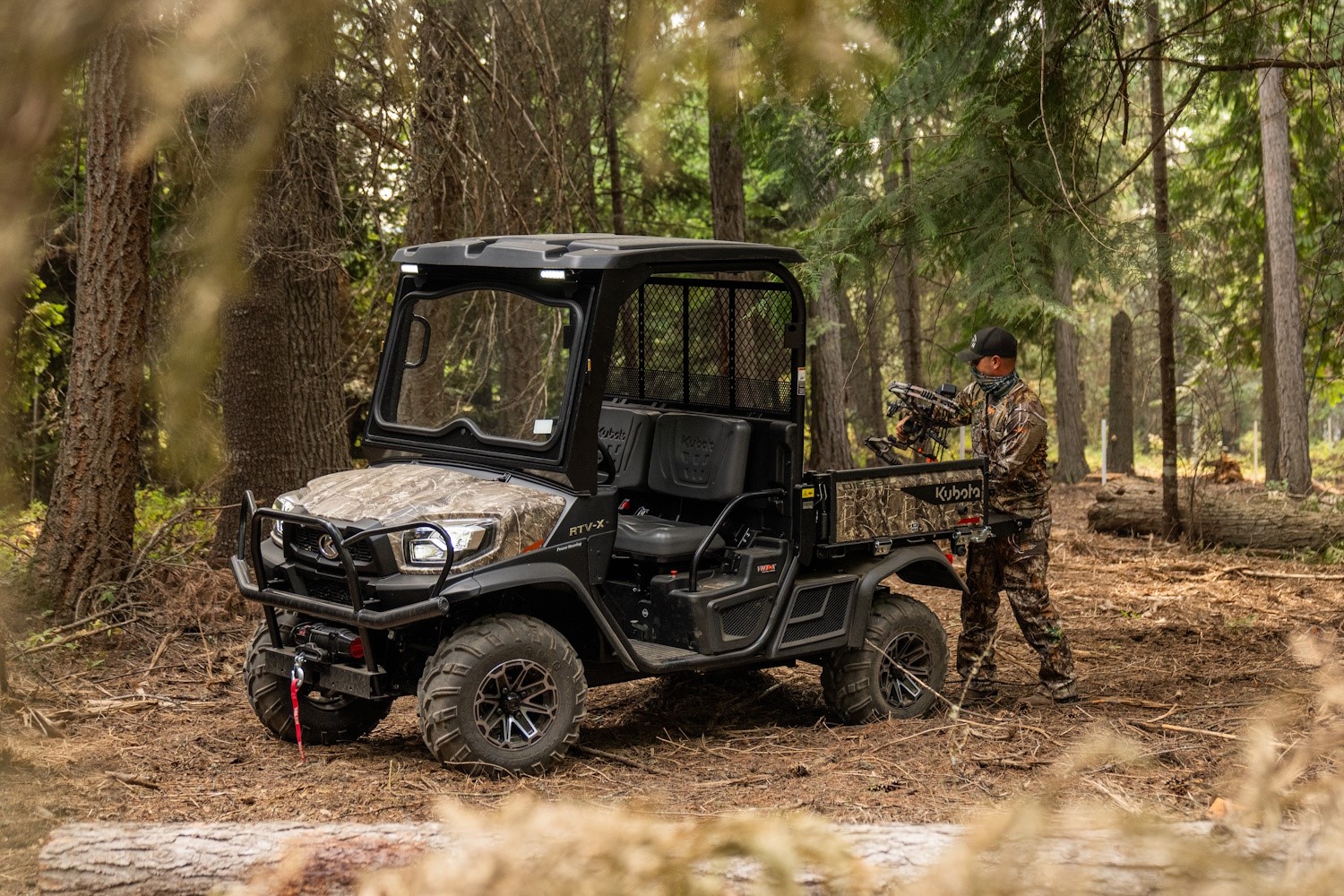

Kubota RTV-X



Features

RTV-X is Here

Tough

  • 24.8 HP Kubota Diesel Engine

    Power when and where you need it. Even after the sun disappears, you can rely on the powerful 24.8 HP diesel engine to keep you moving forward. Kubota-built and worksite-proven, these 3-cylinder liquid-cooled diesel engines have a well-earned reputation for dependable performance even in the harshest worksite terrains.

  • VHT-X (Variable Hydraulic Transmission)

    Kubota has more experience in variable hydraulic transmissions than any other Utility Vehicle manufacturer. Kubota’s advanced VHT-X offers a wide torque band, advanced designed HST motor and large oil coolers to boost durability and increase performance.

  • 20% Larger, Clog-Resistant Radiator

    Open the hood and you’ll find the radiator and air-intake located high and up front, where the air is cleaner and cooler. This improves both radiator performance and simplifies maintenance. Kubota’s wide fin pitch design minimizes clogging, further improving radiator performance.

Capacity

  • 1,300 lbs. towing capacity – standard front and rear two-inch hitch receivers at the front and back
  • Standard hydraulic dump bed with a whopping 19.1 cu. ft./9.9 cu. ft. (two-seat and four-seat configurations, respectively)  capacity cargo bed
  • Optional factory spray-on bed liner to protect the cargo bed

Exceptional Ride

  • Front & Rear Independent Suspension

    Regardless of the terrain or load, independent suspension on all four wheels ensures a truly exceptional ride. Kubota’s Extra Duty IRS (Independent Rear Suspension) technology also sets a new standard for durability.

  • 10.8” Inch Ground Clearance

    The new X1140 raises the bar on ground clearance – to a full 10.8” with 8” of suspension travel – letting you glide over the bumps rather than through them.

  • Limited-Slip Front Differential

    True 4WD drive with a limited-slip front differential and a locking rear differential help reduce wheel spin to a minimum, giving you greater control and a smoother ride on rough or muddy terrain.

  • Dynamic Braking

    You’ll feel more secure, especially when traveling down long inclines, knowing that dynamic braking is providing additional braking power and greater driving control.

More Comfort

  • Ergonomically designed 60:40 split-bench seats (with adjustable driver’s side on Worksite models)
  • Comfortable rear seat – more legroom for the backseat passengers means more comfort and less fatigue
  • Hydraulic power steering eliminates steering wheel kickback increasing operator comfort
  • Tilt-adjustable steering wheel
  • Digital meter cluster to keep you informed of all critical driving conditions, including speed, hours and miles traveled, as well as an overheat alarm
  • Easily accessible dash-mounted parking brake
  • Glove box and under-seat storage compartments
  • Enhanced ROPS for your safety (meets the SAE J2194 and OSHA 1928 ROPS standards)

Alloy Wheels (optional)

You’ll travel in style with these attractive, machine-polished alloy wheels. Clear coating helps keep them bright and shiny.

Specifications

Specifications
Engine Type Engine Type 3-cylinders, 4-cycle, diesel, OHV
Horsepower HP (kW) /rpmHorsepower HP (kW) /rpm24.8 (18.5) @3000
Displacement cu. in. (cc)Displacement cu. in. (cc)68.5 (1123)
Cargo Bed Load lbs. (kg)Cargo Bed Load lbs. (kg)1102 (500)
Towing Capacity Ibs. (kg)Towing Capacity Ibs. (kg)1300 (590)
Length in. (mm)Length in. (mm)120.3 - 122.9 (3055 - 3121)
Width in. (mm)Width in. (mm)63.2 (1,605)
Height, Overall in. (mm)Height, Overall in. (mm)79.5 (2,020)
Drive System Drive System 4WD Standard
Transmission / Transmission TypeTransmission / Transmission TypeVariable Hydro Transmission (VHT-X)
Differential LockDifferential LockFoot operated
Fuel Tank Capacity US gal (L)Fuel Tank Capacity US gal (L)7.9 (30)
Max. Traveling Speed mph (km/h)Max. Traveling Speed mph (km/h)0-25 (0-40)
